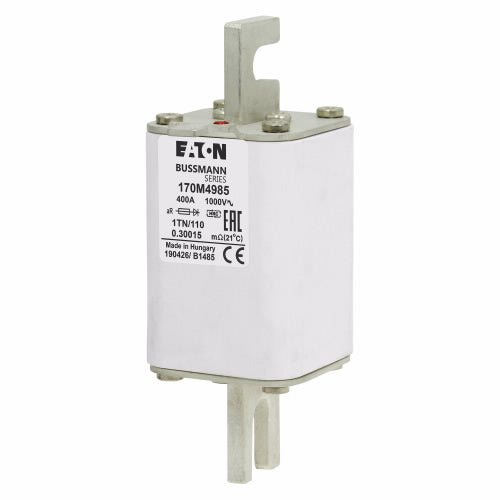

170M - Square Body size 1* to 3 - 1000 Vac (IEC), 50 to 1400 A

1000 Vac (IEC and UL), 50 to 1400 A

Square body DIN 43653 bolted tags high speed fuses, for the protection of DC common bus, DC drives, power converters/rectifiers and reduced rated voltage starters. Available with a Type T or K indicator for a microswitch.

Ratings

• Volts
• 1000 Vac (IEC, 50-1250 A), 900 Vac (IEC, 1400 A)
• 1000 Vac (UL, size 2, size 3, 315-1100 A only)
• 900 Vdc (UL, see catalog number table for specific fuses)
• Amps 50-1400 A
• IR 125 kA RMS Sym.

Operating class aR

Agency information

• Designed and tested to IEC 60269 Part 4
• UL Recognized, JFHR2, E125085 (only sizes 2 and 3)
• CCC (only size 3, 315-1110 A)
• CE
